Supplying, Installation,Testing And Commissioning Of Swimming Pool

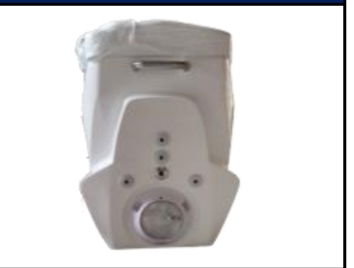

Euro Pipeless Filter

The Euro filter can perform multiple functions of filteration , disinfection and illumination . The Frount part of the filter is immersed in the swimming pool water with light.The pool water goes through the skimmer to the filter drum into the pump and then return to the pool via the jets.The filter bag is easy to clean using high pressure water. Special Features Injection Molded Body wall Mounable Unit LED Illumination system. High Efficiency Disinfection System Saves Water as no backwash required. Easy Installation & Maintenance Specification Euro-25 Euro-50 Flow rate 25 M3/h 50 M3/h Filter Precision <15 um <15 um Power Supply 220v / 50 Hz 220v / 50 Hz Outlet & Inlet 40 mm 40 mm Filteration Pump 1x2 HP 2x2 HP Ozone Generator 500 mg/h 1000mg/h Feeding basket 2 Pc 2 Pc Jet Nossels 2 pc 2 Pc U/W LED Light 18Wx12V(1 Pc) 18Wx12V(1 Pc) Counter Flow 1 No 1 No Code Model Power Filteration capacity AF-01 Euro 25 1x2 H.P 25 m3 / h AF-02 Euro 50 2x2 H.P 50 m3 /h

Wall – Mounted Integrative pool filter

Dolphin Integrative Pipe less filter . The filter integrates the multiple function of filteration,disinfection,vaccume cleaning, Illumination and Whirlpool Massade.The filter eliminates the requirment of balancing tank, buries pipes , plumbing and pump room.The filter body is tough and strong.The filter is easy to clean and install. Special Features Acrylic Heavy Duty Body Stainless-Steel Hand Rail Transformer and Terminal Box Whirlpool Massage Nozzle Stainless steel LED Light Easy Installation & Maintenance user Friendly operation Product Technical Characteristics Model Dolphin-15 Dolphin-35 Material Acrylic shell + fiberglass Acrylic shell + fiberglass Power 1 HP (0.75KW) 3 HP Voltage 220V 50 Hz 220V 50 Hz under-water Light 12V 10W 12V 10W Filteration capacity 15m3/h 35 m3/h Filter Media Filter Bag and Skimmer Filter Bag and Skimmer installation Wall Mounted Wall Mounted Efficiency 5-15 Micron 5-15 Micron Colors White White Code Model Power Filteration capacity Dimention ADF-01 Dolphin 15 1 H.P / 0.75 Kw 15 m3 / h 110x67x76 ADF-02 Dolphin 35 3 H.P/1.5 Kw 35 m3/h 110x67x76

Euro counter Current Unit

counter current unit is an effective way to put an end to a swimming pool that doesn’t stimulate you in any way. A counter current unit produces the effects of an aquatic treadmill,using a powerful and adjustable jet of water. Special Features Pool Turned into an oasis of Relaxation and fitness Make You swim all day and never touch the wall make You stay fit virtually convert your pool length to infinity. Rejuvention in the water Moving water is an excellent medium of exercise and rehabilitative therapy for both healthy and injured individuals. Inbuilt counterflow swimming system This jet steam stream is ready for easy installation . The nozzle, suction and pneumatic switch are positioned in the frount cover panel of the equipment Compleate counterflow swimming system includes Counterflow nozzle 40mm front cover panel with an attractive design Pump Pool wall lead - through Quiet running single-stage centrifugal pumps Asynchronous, two poles & IP 55 protection Continuous operation and long life Seal mounting in glass loaded polyamide Mechanical seal in graphite and steatite Motor housing in aluminium L-2521 Code Model HP KW LPH ECC-01 Euro 2200 3 HP 2.2 70mt3/hrs Ecc-02 Euro 4000 5.5 HP 4 95mt3/hrs

Fiberglass Top-mount Sand Filters

Fiberglass sand filters are constructed by the latest engineering Technology .The improvement of flowability provides an Ultra-pure water filteration. Fiberglass sand filters are the most recommendable equipment for the application of swimming pool. Special Features Special materials are depenable and suitable for all weather performance UV-resistance surface allows the filter to work under direct sunlight sand Required:0.8-1.0mm granule Model No Tank Dia.(mm) Height (mm) Valve Port Size (mm) Filter area (m2) Sillica Sand Design Flow AT16 400 740 40 0.13 30 6300 AT18 450 800 40 1.16 40 7980 At21 525 840 40 0.22 85 11520 AT25 625 960 40 0.3 155 16200 AT28 710 1025 40 0.4 185 19200 AT32 800 1200 40 0.5 210 25200 AT36 900 1300 40 0.64 310 30000 AT40 1000 1400 40 0.79 410 33000 AT44 1120 1480 40 0.98 460 37800 AT48 1200 1600 40 0.13 560 42000 AT56 1400 1850 40 1.54 900 57000

Fiberglass side Mount sand Filters

Special Features PVC block top cover and PC transparent top cover for option Transparent lid cover allows easy inspection of the sand bed Top diffuser ensure even distribution of water over the top of the sand bed Model No Tank Dia.(mm) Height (mm) Valve Port Size (mm) Filter area (m2) Sillica Sand Design Flow (Iph) AS18 450 630 40 1.16 40 7980 AS21 525 675 40 0.22 85 11520 AS25 625 745 40 0.3 155 16200 AS28 710 830 40 0.4 185 19200 AS32 800 905 40 0.5 210 25200 AS36 900 1005 40 0.64 310 30000 AS40 1000 1085 40 0.79 410 33000 AS44 1120 1195 40 0.98 460 37800 AS48 1200 1325 40 0.13 560 42000

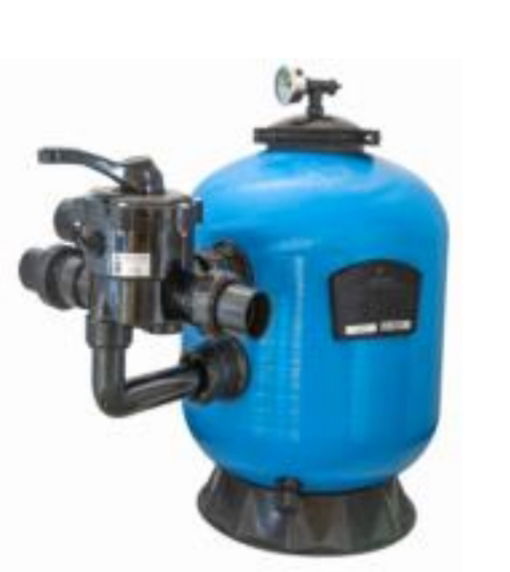

Fiberglass Commercial Sand Filters

Special Features Air relief bolt enables easy release of trapped air during operation of the filter A large top manhole is easy for access to the interior. material used are dependable and suitable for all-weather performance UV resistance surface allows the filter to work under direct sunlight.

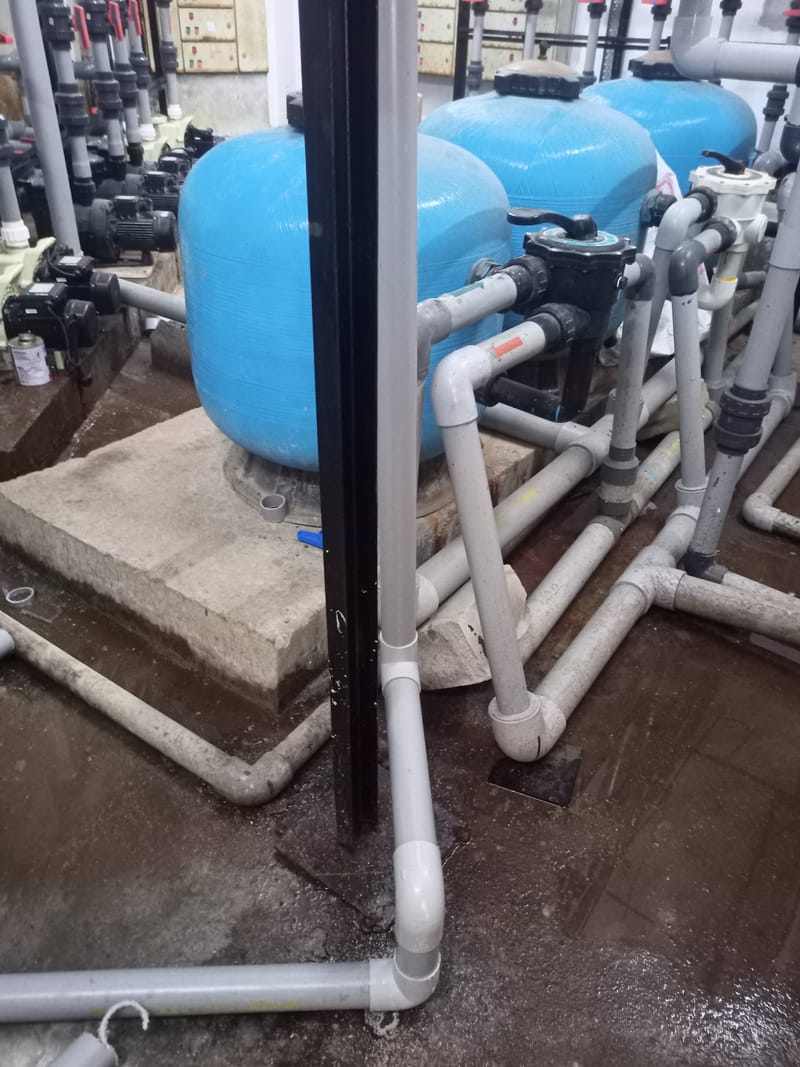

Swimming Pool Filtration System

swimming pool water filtration plant is considered as a facility which helps to get pure water by removing hazardous material, toxic matters or chemicals. These swimming pool filtration plants are used to make filtration of water and convert it for human consumption. Swimming Pool Filtration system is a vital operation within the Pool running and is assured by our range of excessive-efficiency Pool filters and pumps with up-to-date pre-filters and other unique additives. For Pool disinfection, we offer global elegance dosing structures, to keep hygiene of the pool. Swimming Pool Filtration System, disinfection and cleaning of the pool can be fully computerized, thereby permitting your swimming pool to be in operation really impartial. Keep the swimming pool water clean, hygienic and pure by using high tech Swimming Pool Filtration System made available by us. Unmatched quality modular designs of our swimming Pool Filter System ensure quick inspection and easy cleaning of cells. Our swimming pool filters are designed in such a way that they are easy to install and remove. Swimming Pool Filters offered by us are in huge demand in schools, hotels, clubs, bungalows etc. We are counted among the supreme Swimming Pool Filters manufacturers based in India. There are various methods to purify the water from microscopic and potentially harmful microbes like ion exchange, absorption etc. Filtration is a must to purify the water and make it drinkable as well as to adjust the pH to a considerable level. Apram Pools offers you a wide range of filtration plants best suited for your needs. These filter plants may be fully automatic or can be operated from remote area. Based on the clients\92 requirements, customization can be made accordingly. Filter with manual operation or having multiport valves are also available here. These filters are build mainly from the range of Activated carbon filters, containing activated carbon along with pebbles, silex and crushed gravel. Iron removal filters, containing manganese dioxide, along with pebbles, silex and crushed gravel. Dual media filter, follows the principal of depth filtration. Main ingredients are sand, pebbles and silex. So get pure and clean drinking and usable water please don\92t hesitate to contact us. Our expert team will be available to you at your convenient time. Our experience and skill in this sector will surely give you a strong support and help you to find out the best possible solution for your filtering water problem

Fiberglass Top-Mounted deep bed sand filter

Special Features Maximum working pressure up to 600 KPA Uniquely designed distribution system makes a stable and efficient water flow

Complete Filtration System

Special Features Completely replaces the clumsy and exorbitant tranditional machine/plant room by the simple and practical design . Easy to be installed and economics. Entirely able to load the complete filtration system, with safty and stable in operation,minimum maintenance.

Bead Filters

The other big advantage that bead filters have compared with other types of filters is they are much more enjoyable,with less work involved in maintenaing a healthy environment for the fish Special Features Bobbin wound fiberglass filter tank Easy -to-use 6-way multi-port valve and water drain plug Air release valve enables easy release of trapped air during operation of the filter Applicable for most of fish pond & aquarium filteration

Pump

Special Features Pump is designed to work for more efficient and economical options. Pump is built to be easy to operate with button and timer control system to set different speed as per the demanding. Pump is performance and pressure tested prior to shipment to ensure superior quality

Centrifugal Pumps

Special Features Material: Pump body, pumps foot and diffuser in glass loaded polypropylene Seal Mounting in glass loaded polyamide Mechanical seal in graphite and steatite

U Shape Ladder

Overflow Ladder

Euro Resin Filled SS Light

Special Features Filled with resin inside the lamps,ensure high waterproof range and quality Easy To Install , easy to operate Lower Power Consumption,High brightness.

Euro Resin Filled SS Light

Special Features Filled with resin inside the lamps,ensure high waterproof range and quality Easy To Install , easy to operate Lower Power Consumption,High brightness.

LED Lights For water Body

Special Features Water body wall recessed 1.5" FTA mounting stainless steel light fitting Suitable For Swimming Pool and Fountains and installed underwater use only

Floor Inlet

code Description Flow Standard packing Wight ( Kg) ABS-07 Concrete Floor Inlet-Threaded 12000 LPH 1 0.2 ABS-08 Concrete Floor Inlet-Non Threaded 12000 LPH 1 0.2

Main drain ( Round )

Special Features Made Of White ABS with UV Protection Included Side Connection with 2" thread Drain grilles used in concrete pools with a built-in main drain Code Colour Material Flow rate (L/Min) ABS-15 White ABS 558

Standard Mouth skimmer

Skimmer is injection molded with durable and reinforced material which is excellent in strenght and durability . A large capacity filter bucket provides removal of accumulated debris Model code Colour Material Annotation Connection Flowrate AS-3 AS-42 White ABS Vinyl pool 1-1/2" Threaded 150 AS-4 AS-43 White ABS Concrete Pool 1-1/2" Threaded 150

Leaf Net Bag Type

Special Features Brief and fluent design for shape Design handle with angle to make using comfortable fram looks great with out any dot of net stiking on it

Standard curved Wall Brush

Special Features Economical design Can be operated by only one hand and especially used to clean side wall

Vacuume Hose Pipe

Special Features Heavy duty and long life UV Protected Flexible and Floating Available in 15m/30m

Telescopic handle

Special Features Economical design Standard Connector can be used in all standard handles dia.1 inch poles is more stronger

Aluminium Vacuum Head

Special Features high strenght Durability Available in varied dimentions

Starting Block For Competition Pool

Special Features We offer high grade swimming pool starting blocks. These find their application mainly in pool compitition and diving. H+ Standard Packing ST.Wt St.Volume 400mm Standard Packing 25kg 0.36

Racing lane roller

Fully wheeled , transportable storage reels with sufficient storage for the compititor lane ropes.Two of these have brakes Code Model ASR-01 ASR-01 For one lane ASR-02 ASR-02 For three lane

Life Belt ring and holder

Orange plastic, 730mm diameters, supplied with stainless steel holder for attachment to wall

Heat Pump

Heat Pumps maximises the value and enjoyment from your pool all year round . Thease are the most efficient and economical pool heat pumps available in the market.heat pumps require a small amount of energy to operate the compressore and fan motor and hence effectivly reduce energy bill. Special Features Long operating life & eco friendly Economical and high - efficiency Special titanium heat exchanger Precise temperature control Easy installation & servicing

Swimming Pool Cover

Special Features Pool Covers reduce chemical and water loss and the water stays clean longer with minium care. They are also called solar blankets or solar pool covers. The bubbles trap heat in the pool , keeping the pool water warm. Heat welded to any size & shape Addition Uv & Chemical protection Saves Water,Chemical & cleaning time Long life & easy installation

Jacuzzi Pump

Jacuzzi baths and spas are more than just getting clean.The main purpose of a whirlpool tub is to relax and massge your tired muscles. The under warer jet circulates the water through the pipes using the underwater suction. Jacuzzi Accessories Standard Jet Air & Water Ell body Air & water Tee Body

Euro spa

8603 Euro 8603 spa is a one-piece miniature pool, made of fiberglass-reinforced acrylic.It produces a reesistant current that can be set to varying strenths,depending on the fitness level of the person using the pool. Equipment High performance pumps 3x3HP synthetic Cabinet 1 pc Circulation pump 1x0.5 HP Drain 1 pc Heater 1x3 kw Filteration 2Pcs LED light 1 pc High density foam insulation 1 pc Blower 1 HP Lockable thermo hard cover 1 pc Aromatherapy 1 pc Headrest 4 pcs Ozone 1 pc Theated timber frame 1 pc Controller 1pc fiber glass base tray 1 pc Dimensions 4180 x 2200x1360mm Capacity 5600L Seating 2 seats Dry Weight 1000 kg Filled Weight 4890 kg Euro Spa 8601 Equipment High Performance pumps 2 x 3 HP, 3x2 hp Synthetic cabinet 1 pc Circulation pumps 2 x 0.5 HP Drain Hrater 2 x 3 Kw Filteration 1 Pc LED Light 2 pcs High densty foam insulation 1 pc Blower 2 pcs High density foam insulation 1 pc Aromatherapy 1 HP Lockable thermo hard cover 1 pc Ozone 1 pc Headrest 4pcs Controller 1 pc Fiber glass base tray 1 pc Euro 8001 Dimensions 4180 x 2200 x 1000mm Capacity 3000l Seating ( swimming Tub ) 6 seats + 2 Lounger Dry Wight 860 Kg Filled weight 4230 kg Jets Hydrotherapy jets ( 4" ) 4 pc Hydrotherapy jets ( 3" ) 9 pcs Hydrotherapy jets (2.5") 22 pcs Deep Tissue Massage ( 2" ) 63 pcs Air Jets 16pcs Total jets 114pcs Euro 8011 Dimensions 2200x2200x950mm Capacity 1480L Seating ( Swimming Tube 0 4 seats + 2 Lounger Dry Weight 350 kg Filled Weight 1950 kg Jets Hydrotherapy jets (4") 2 pcs Hydrotherapy jets (3") 13pcs Hydrotherapy jets (2.5") 6 pcs Deep Tissue massge (2") 19pcs Air jets 10pcs Total jet 50pcs Euro 8012 Equipment High performance pumps 2 x 2 HP Synthetic cabinet 1 Pc Circulation Pump 1 x 0.5 HP Drain 1 Pc Heater 1 x 3 kw Filteration 1 pcs LED Light 1 pc High Density foam insulation 1 pc Blower 1 HP Lockable thermo hard cover 1 pc Aromatherapy 1 pc Treated timeber frame 1 pc Ozone 1 pc Treated timber frame 1 pc Controller 1 pc Fiber glass base tray 1 pc Dimensions 2200x2200x950mm Capacity 1480L Seating ( Swimming Tub) 3 seats + 2 lounger Dry weight 350 kg Filled weight 1850 kg Euro 8013 Dimensions 2100 x 1550 x 920 mm capacity 1100L ( Approx) Seating ( Swimming Tub) 2 seats + 1 Lounger Dry Weight 280 kg Filled Weight 1380 kg Jets Hydrotherapy jets (4 " ) 4pc Hydrotherapy jets (3" ) 8pcs Hydrotherapy jets (2.5" ) 7pcs Deep tissue massage (2") 14pcs Air jets (2") 6pcs Total Jets 39pcs

Tub Motor

Special Features Suction , discharge and motor mounting in polypropylene Motor shaft in stainless steel AISI-420 Mechanical seal in graphite and steatite

Cascade Fall

Description Opening Width SS316L Cascade Fall 500 SS316L Cascade Fall 1000

Rainfall

Description Opning Width (mm) A B SS316L Rainfall 106 300 650 600 SS316L Rainfall 106 500 700 600 SS316L Rainfall 106 700 800 765 SS316L Rainfall 106 1000 1000 900

Water fall

Descriptions Opning Width (mm) A B SS316L Rainfall 106 A 300 650 600 SS316L Rainfall 106 A 500 700 750 SS316L Rainfall 106 A 700 800 900 SS316L Rainfall 106 A 1000 1000 1000
